PE Film Extrusion Solutions
Film Blowing Machine
Manufacturer & Supplier
From compact film blowing machines to high-output multilayer extrusion lines, E-SHION provides customized solutions for different materials, film specifications and production requirements.
A film blowing machine melts plastic pellets and inflates them into a continuous film bubble — cooled, flattened and wound into rolls. E-SHION builds lines from 100 mm mini machines to 2,600 mm IBC, 30–500 kg/h, CE certified.
- LDPE / LLDPE / HDPE
- Monolayer to Multi-layer
- Custom Configuration
Find Your Configuration
Step 01 · What are you producing?
Engineering Considerations
A film blowing machine is not selected by machine size alone. Material, film thickness, output requirements and end application all affect the final configuration.
Learn More About E-SHION →Material
LDPE / LLDPE / HDPE
We design the right screw, barrel and die for your material.
Film
Thickness / Width / Layer Structure
Configured for the film you want to produce.
Production
Output / Automation / Winding
Optimized for your target output and production plan.
Our Film Blowing Machines
Featured Machine

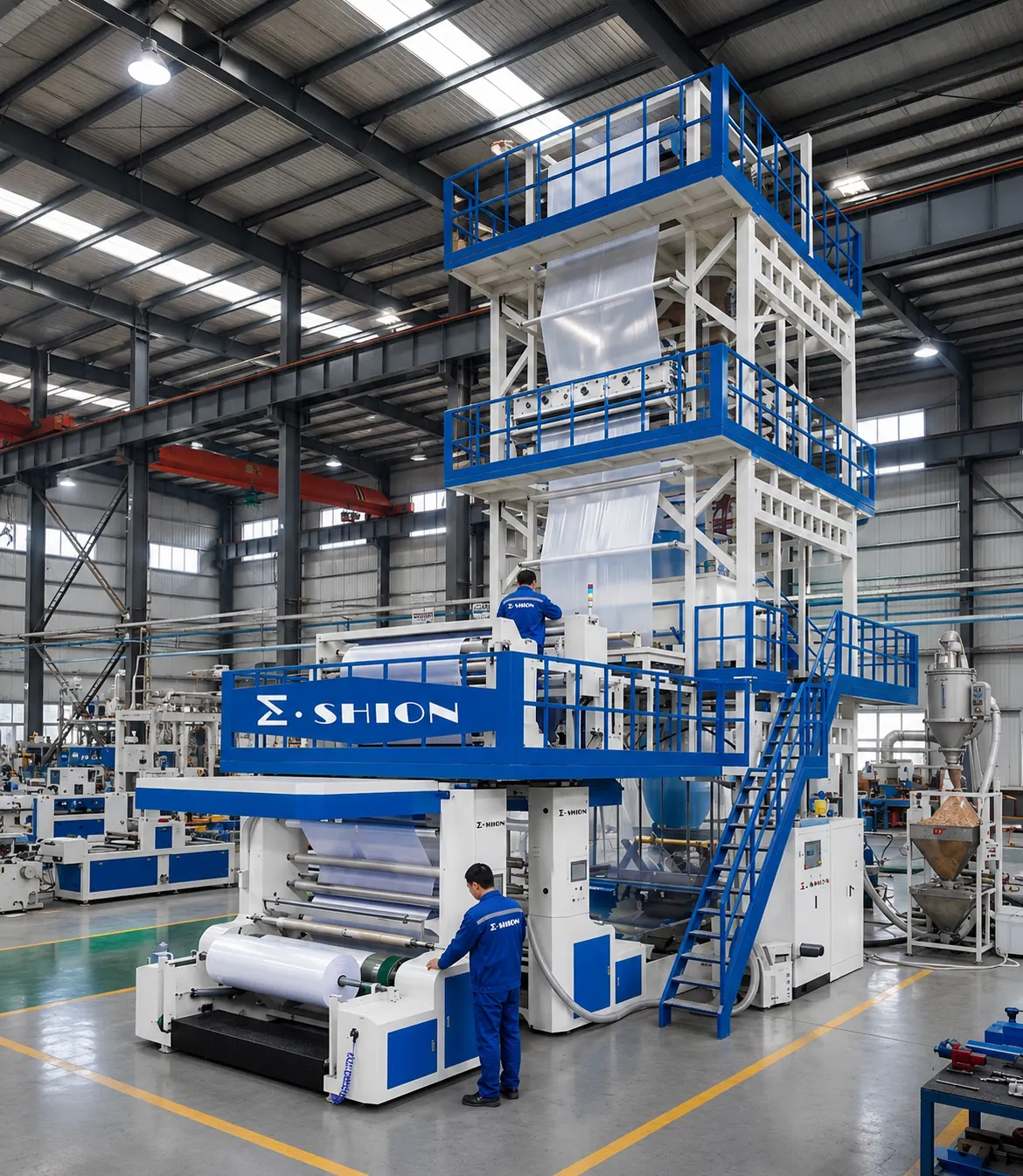

IBC 3 Layer Film Blowing Machine
High-output multi-layer co-extrusion with internal bubble cooling — up to {output(ibc-3-layer)} output at {filmWidth(ibc-3-layer)} folded width.

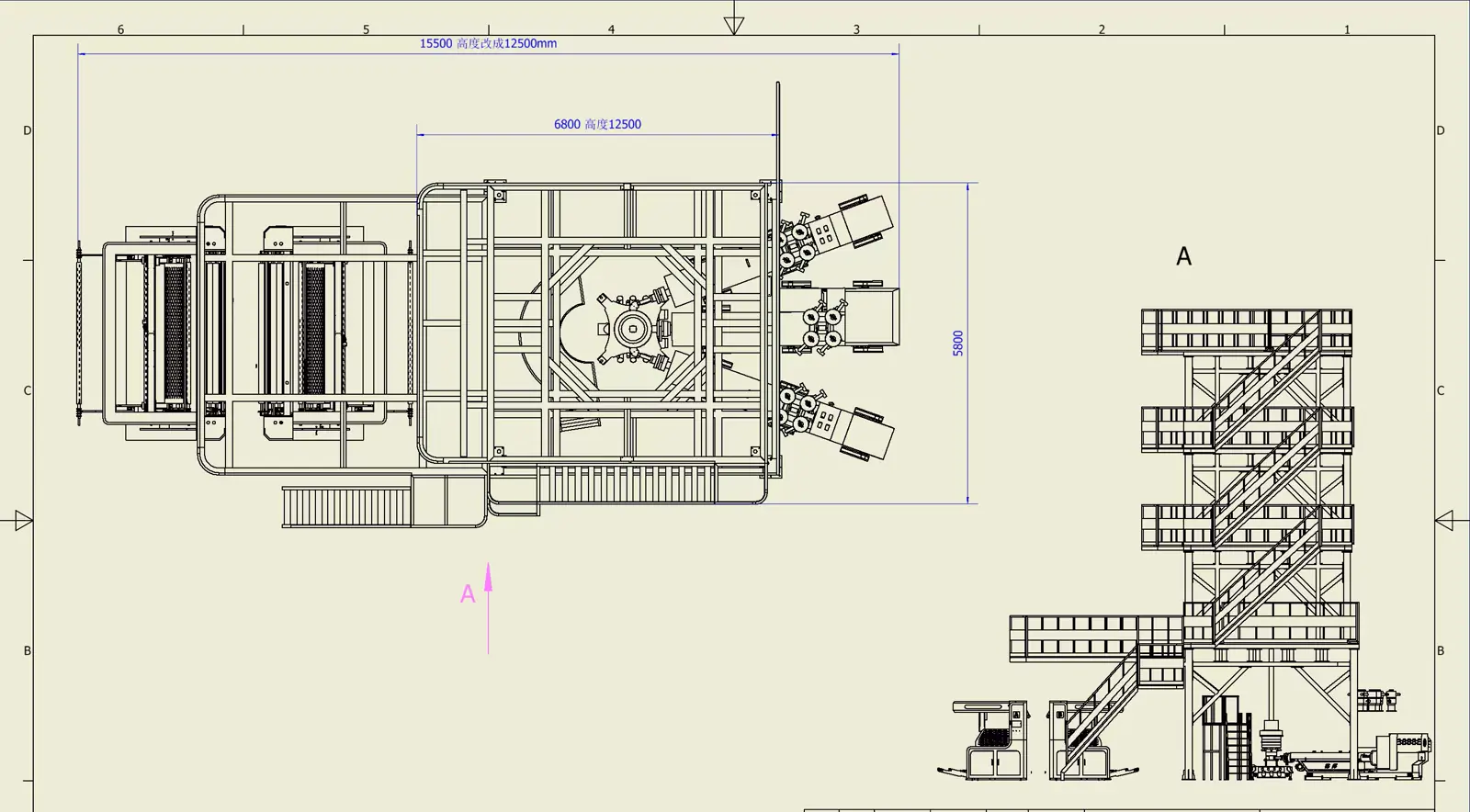

- Engineered to your film spec — screw, die and tower configured for your material and width, with a layout drawing confirmed before you order
- Build quality you can check — 38CrMoAlA nitrided screws, hardened gearboxes with forced lubrication, PID/SCR temperature control

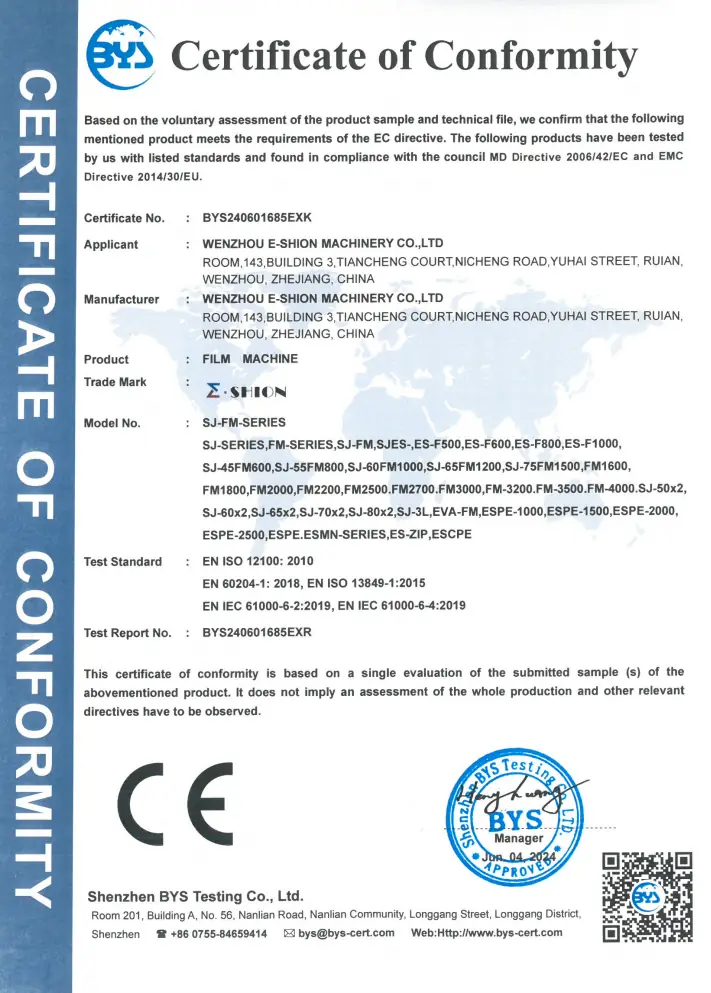

- Factory-direct with one warranty — CE certified under ISO 9001, installation, training and 24/7 support included
- Rated for 24/7 continuous operation — engineered for round-the-clock production stability on the factory floor
How Film Blowing Works
One film blowing machine turns plastic pellets into continuous film rolls.
One film blowing machine is a complete extrusion line: plastic pellets are melted in a screw extruder, forced through a circular die, and inflated into a film bubble. An air ring cools the bubble, nips and flattens it, then the winder rolls the film at a constant tension.
The result is a continuous roll of film ready for printing, bag making, lamination or direct sale — from the same production hall.
- Extruder melts the polymer (LDPE, LLDPE, HDPE, PP)
- Circular die forms the melt into a tube

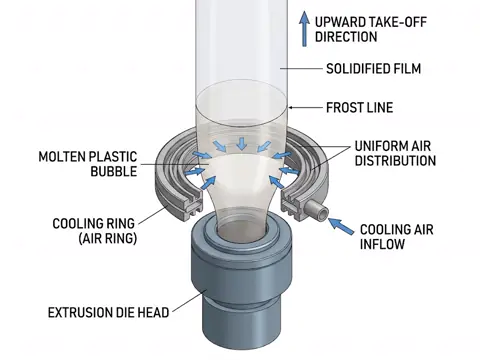

- Air ring + internal bubble cooling stabilize the bubble
- Nip rollers flatten the tube into double film
- Winder produces rolls at constant tension

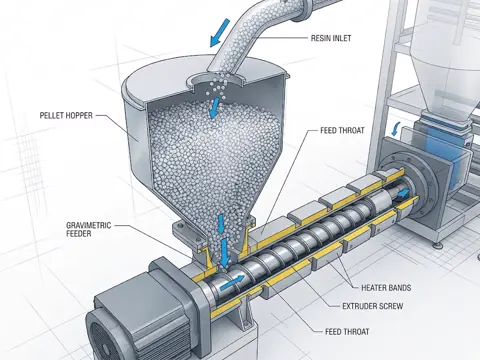

01Resin Feeding

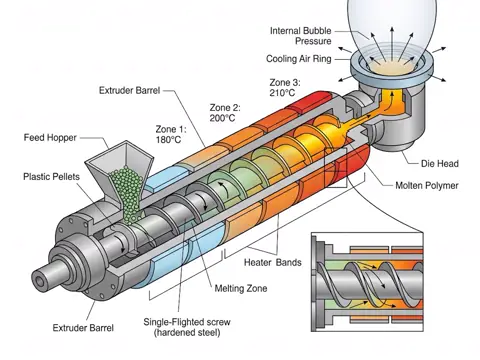

02Extrusion

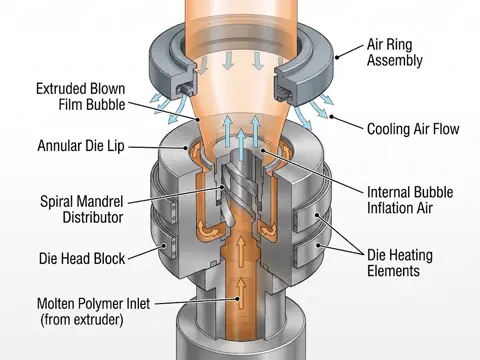

03Die Head

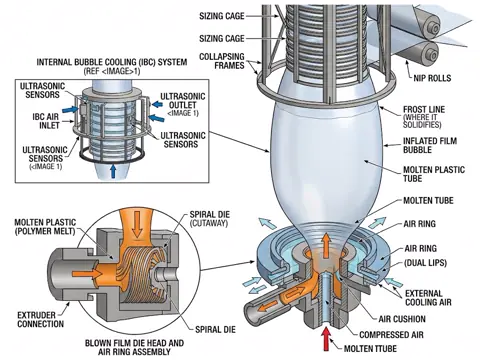

04Bubble Formation
05Cooling & Haul-off

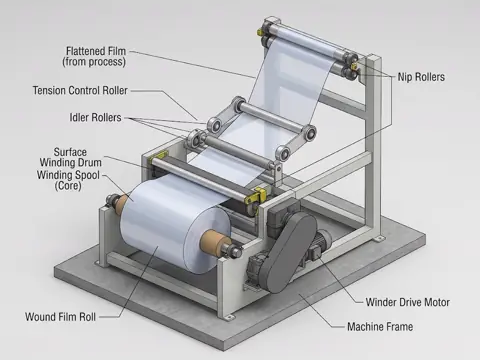

06Winding
One line, from pellet to finished bag — film blowing, printing and bag making engineered to run together. Complete plastic packaging solution.
Materials We Process
Most packaging films are polyethylene — LDPE and LLDPE for soft films and bags, HDPE for stiffer shopping bags, PP for high-clarity film. E-SHION machines are configured to your material mix.

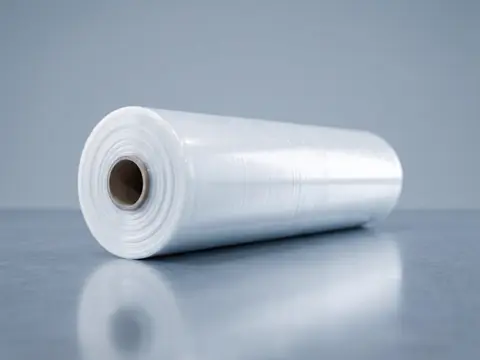

LDPESoft, easy-sealing film for carrier bags, garbage bags and flat bags — monolayer or ABA.Learn more →

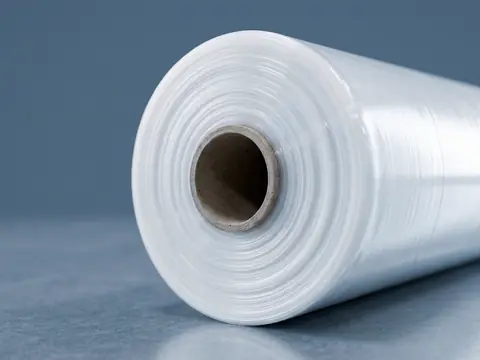

LLDPETough, puncture-resistant film for heavy garbage bags and stretch film — often blended with LDPE.Learn more →

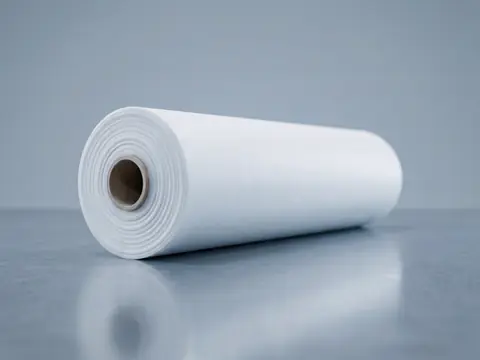

HDPEStiff, crackly film for shopping and T-shirt bags — typically runs hotter and narrower than LDPE.Learn more →
Applications — what you can produce
The film roll is the raw material for the rest of your line. Each application page links the film blowing machine to the complete production solution.

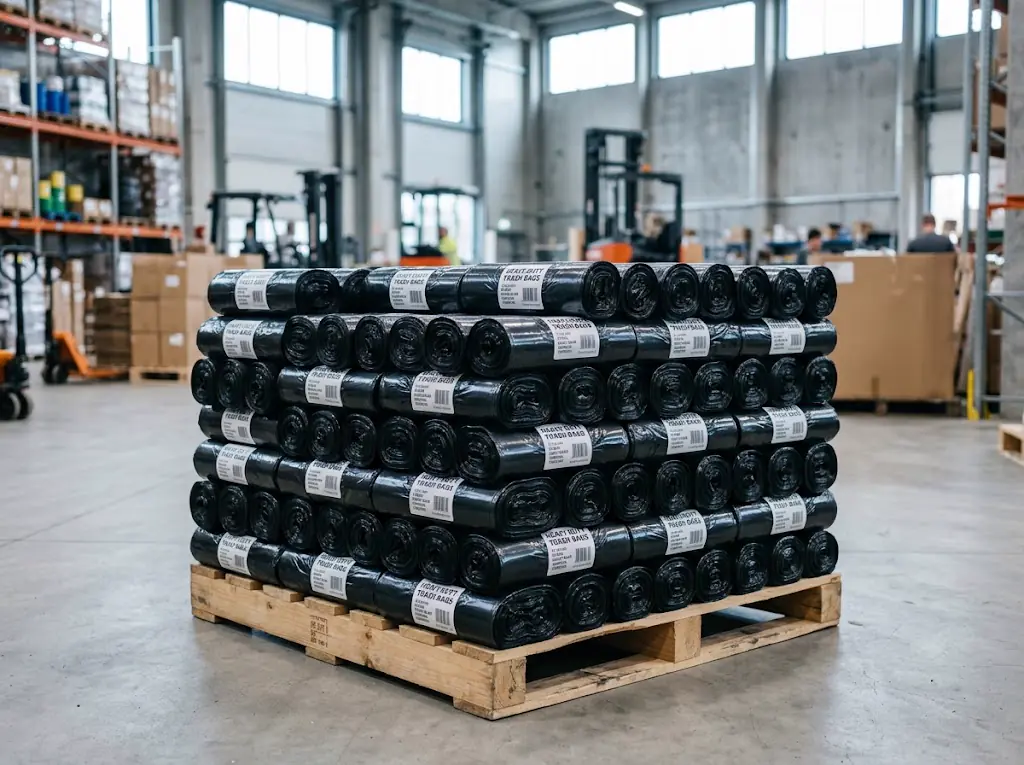

Garbage bag filmLDPE/LLDPE film for drawstring and tie-on garbage bags — recommended machines: monolayer, ABA.View solution →

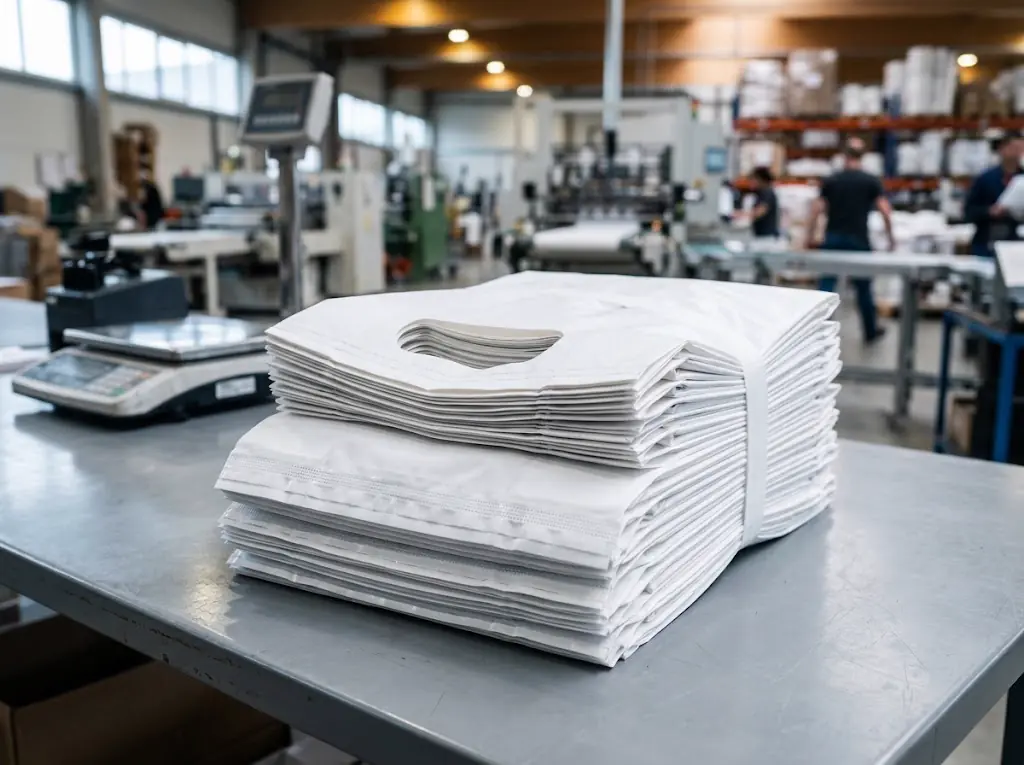

Shopping bag filmHDPE and LDPE film for carrier and vest bags — recommended machines: monolayer, IBC 3-layer.View solution →

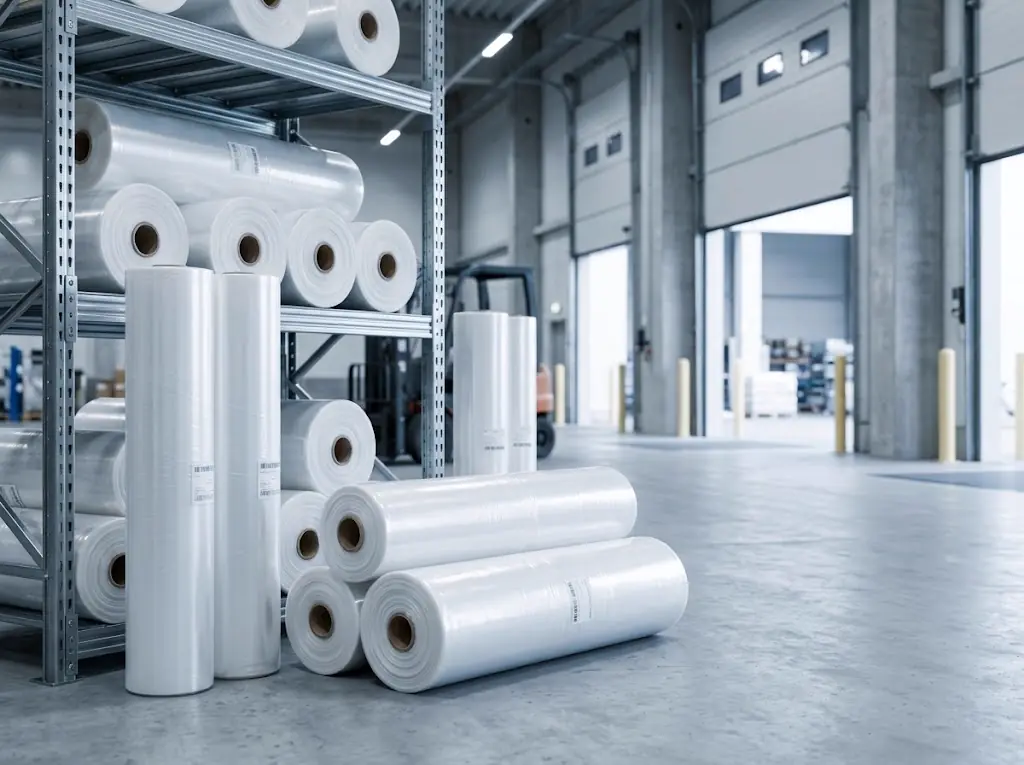

Agricultural filmGreenhouse, mulch and tunnel film from 500 mm to 2,600 mm width — recommended: IBC 3-layer, ABA.View solution →

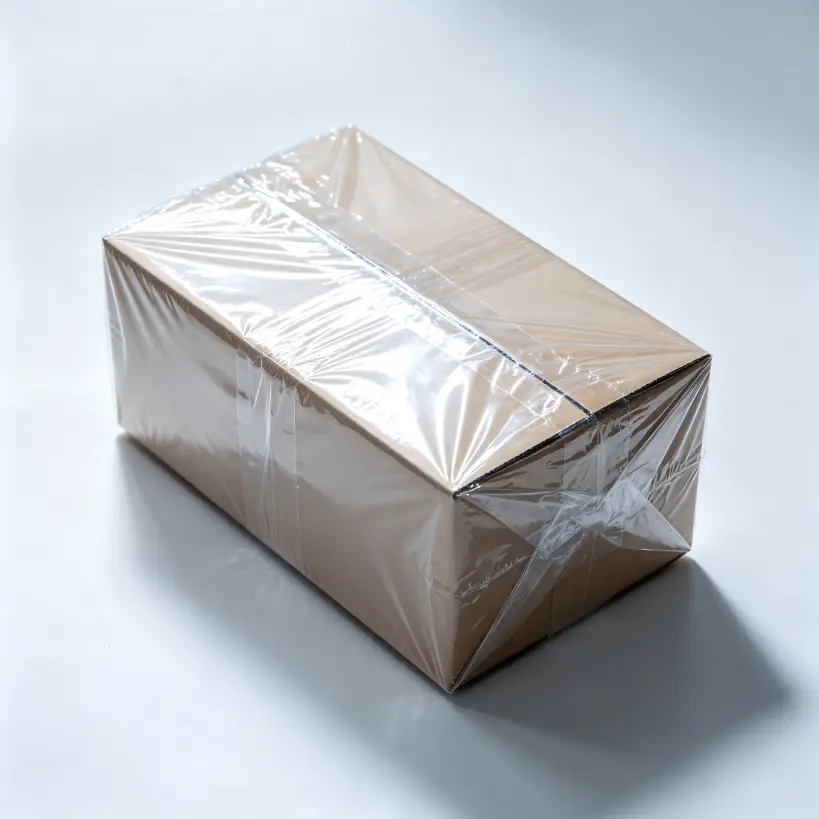

Shrink filmShrinkable film for multipacks and bundles — recommended: monolayer, ABA.View solution →

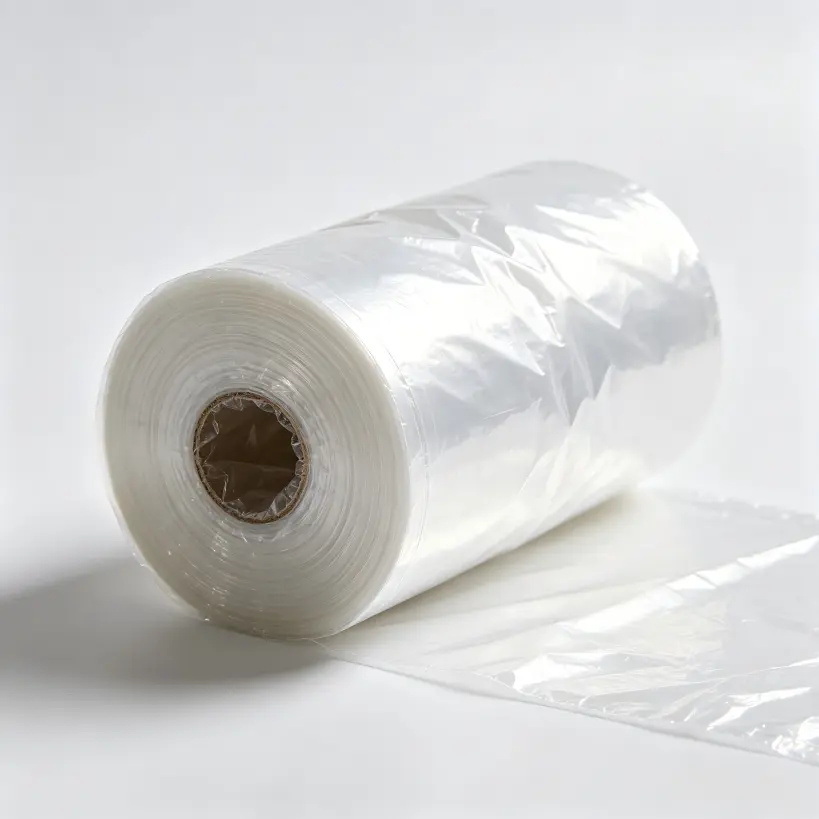

Food packaging filmHigh-clarity co-extruded film for food bags and pouches — recommended: IBC 3-layer.View solution →Engineering Data
- Film width
- 100–2,600 mm folded
- Layer structure
- 1–3 layers standard · 5-layer built to order
- Output
- 30–500 kg/h
- Materials
- LDPE / LLDPE / HDPE / PP / EVA
- Applications
- Packaging · Bags · Agricultural film
Engineering specifications
The headline numbers behind the full range — computed live from each machine's datasheet:
View machine specifications
Monolayer Blown Film Machine1 layers · 600–1200 mm width · 30–120 kg/h output · 0.008–0.10 mm thickness · $18,000 – $45,000
| Film Width (Folded) | 600–1200 mm |
|---|---|
| Max Output | 30–120 kg/h |
| Thickness Range | 0.008–0.10 mm |
| Total Power | 46 kW | 66 kW | 66 kW | 74 kW |
| Price | $18,000 – $45,000 |
Mini Film Blowing Machine1 layers · 100–800 mm width · 35–50 kg/h output · 0.01–0.12 mm thickness · $12,000 – $28,000
| Film Width (Folded) | 100–800 mm |
|---|---|
| Film Thickness | 0.01–0.12 mm |
| Screw Diameter | Φ50 mm |
| Max. Output | 35–50 kg/h |
| Price | $12,000 – $28,000 |
ABA Film Blowing Machine3 layers · 100–1200 mm width · 40–120 kg/h output · LDPE / LLDPE / HDPE / CaCO₃ material · $35,000 – $90,000
| Material Type | LDPE / LLDPE / HDPE / CaCO₃ |
|---|---|
| Film Width | 100–1200 mm |
| Max Output | 40–120 kg/h |
| Screw Diameter | φ45–65 mm |
| Price | $35,000 – $90,000 |
IBC 3 Layer Film Blowing Machine3 layers · 2600 mm width · 500 kg/h output · 0.025–0.15 mm thickness · $60,000 – $150,000
| Model | SJ-3 |
|---|---|
| Max Output | 500 kg/h |
| Film Width (Folded) | 2600 mm |
| Thickness Range | 0.025–0.15 mm |
| Price | $60,000 – $150,000 |
PP Film Blowing Machine1 layers · 200–1000 mm width · Up to 100 kg/h output · 0.01–0.15 mm thickness · $18,000 – $45,000
| Film Width | 200–1000 mm |
|---|---|
| Max Output | Up to 100 kg/h |
| Film Thickness | 0.01–0.15 mm |
| Total Power | 70 kW |
| Price | $18,000 – $45,000 |
3 Layer Air Bubble Film Machine3 layers · 3000 mm width · $25,000 – $65,000
| Bubble Layer Unit | kW Motor · 105 mm diameter screw |
|---|---|
| Base Layer Unit | kW Motor · 95 mm diameter screw |
| Coating Layer Unit | kW Motor · 90 mm diameter screw |
| Max Finished Width | 3000 mm · Customizable for various roll sizes |
| Price | $25,000 – $65,000 |
See the Machine Running
3 Layer Film Blowing Machine — Three-Layer Co-Extrusion IBC Blown Film Machine
Real equipment.
Real production.
Real factory environment.
- Film bubble
- Haul-off system
- Winding process
- Factory commissioning

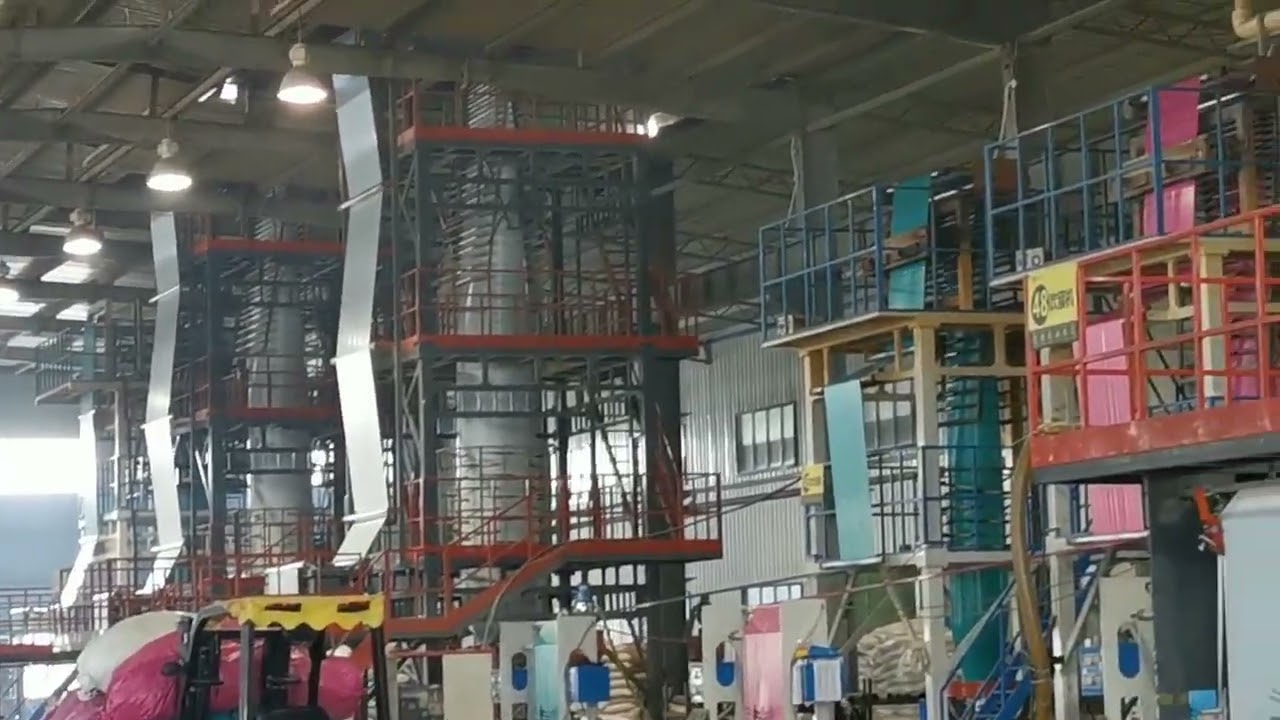

Three-Layer Co-Extrusion Blown Film Machine — Customer Factory Production
How to Choose a Film Blowing Machine
Work from the film you sell backwards, not from the machine forwards:
- 01
What are you producing?
Bags / Agricultural film / Packaging film
- 02
What material do you mainly want to process?
LDPE / LLDPE / HDPE / Recycled PE
- 03
What production capacity do you need?
Small-scale / Standard / High-output
- 04
What is most important for your production?
Investment / Material cost / Output / Film quality
Not Sure Which Machine Fits Your Production?
Not sure which machine fits your production? Send us your film width, material and target output — we confirm the configuration and send a layout drawing with the quote, free.
Talk to an EngineerFilm Line ROI Estimator
Estimate how fast a blown film line pays for itself. Figures are indicative — your engineer confirms the real numbers with your quote.
Frequently asked questions
01What is a film blowing machine?
A film blowing machine (blown film extrusion line) melts plastic pellets and inflates them through a circular die into a film bubble, then cools, flattens and winds the film into rolls. It is the first machine in a plastic bag or packaging production line.
02What is the difference between monolayer and multi-layer film blowing machines?
A monolayer machine extrudes a single layer of one material. Multi-layer co-extrusion machines (ABA, ABC, 3-layer, 5-layer) combine several layers in one die head for barrier properties, strength and printability without lamination. ABA uses two extruders for three layers; ABC uses three extruders for three layers.
03How much does a film blowing machine cost?
Indicative factory-direct ranges run from about $12K to $150K depending on film width, output, layer count and automation — request a quote for your exact configuration. Indicative ranges by machine type — Monolayer: $18,000 – $45,000; IBC 3 Layer: $60,000 – $150,000; ABA: $35,000 – $90,000; 3 Layer Air Bubble: $25,000 – $65,000; PP: $18,000 – $45,000; Mini: $12,000 – $28,000.
04What film width and output can E-SHION machines produce?
Film width from 100 mm (mini) up to 2,600 mm folded (IBC 3-layer), output from 35–50 kg/h (mini) to 500 kg/h (IBC 3-layer), thickness 0.008–0.15 mm depending on configuration.
05What materials can the machines process?
LDPE, LLDPE, HDPE, PP and CaCO₃ masterbatch compounds. Machines are configured to your material mix before production.
06Do you supply the complete line from film to bag?
Yes — film blowing, printing, bag making and recycling machines are all built under one roof, so one supplier covers the full production line with one warranty and one support line.
Tell us your material, film specification and production target
Our engineers can recommend a suitable machine configuration.
- Reply within 4 hours
- Free layout drawing with the quote
Opens the machine configuration form — tell us your material, film spec and target output.
Machines delivered, lines running
Three-layer IBC blown film line
A three-layer co-extrusion line with internal bubble cooling for converters who need high clarity, uniform gauge and good sealing performance in one film.
High-speed T-shirt bag line
Film rolls in, finished T-shirt and vest bags out — automatic sealing, cutting and stacking for retail bag manufacturers.
Film scrap to reusable pellets
Granulating lines that turn film scrap and edge trim back into pellets for the same production hall — cutting material cost and waste.
