PP Film Blowing Machine
The E-SHION PP film blowing machine is a double-layer co-extrusion line built on two Φ65 mm screws and a Φ250 mm rotary die head, producing folded film 200–1,000 mm wide from 0.01 mm to 0.15 mm single-side thickness at up to 100 kg/h. It runs PP, PE and CPE with a 28:1 screw ratio, six-zone stainless-steel heating, a 50 m/min pneumatic-clamp haul-off and a double rewinder — the standard machine for PP packaging film, clear bags and laminated film substrates.
Watch it run
Real production video of the pp film blowing machine in our Wenzhou plant.
PP Single-Screw Film Blowing Machine — Factory Footage
- Machine running in real production
- Key process steps visible
- Finishing and winding shown
- Factory environment — not a studio render
Technical specifications
Complete technical parameters for the pp film blowing machine series.
| Material Compatibility | PP, PE, CPE |
|---|---|
| Screw Size | 65 × 2 mm |
| Main Motor Power | 22 kW (inverter 22 kW) |
| Max Output | Up to 100 kg/h — film width, thickness and traction speed are set together for your product — confirm the combination with an engineer before ordering |
| Film Width Range | 200–1,000 mm (folded, customizable) |
| Film Thickness Range | 0.01–0.15 mm (per layer) |
| Machine Dimensions (L×W×H) | Approx. 8,500 × 3,000 × 6,800 mm |
| Weight | ~5,000 kg |
| Screw & Barrel Material | 38CrMoAlA, nitrided — Φ65 mm × 2 screws |
| Screw Ratio (L/D) | 28:1 |
| Screw Rotary Speed | 10–120 rpm |
| Gear Box | #173 gear box |
| Rotary Die Head | Φ250 mm rotary die head |
| Cooling Air Ring | aluminium alloy rotary air ring |

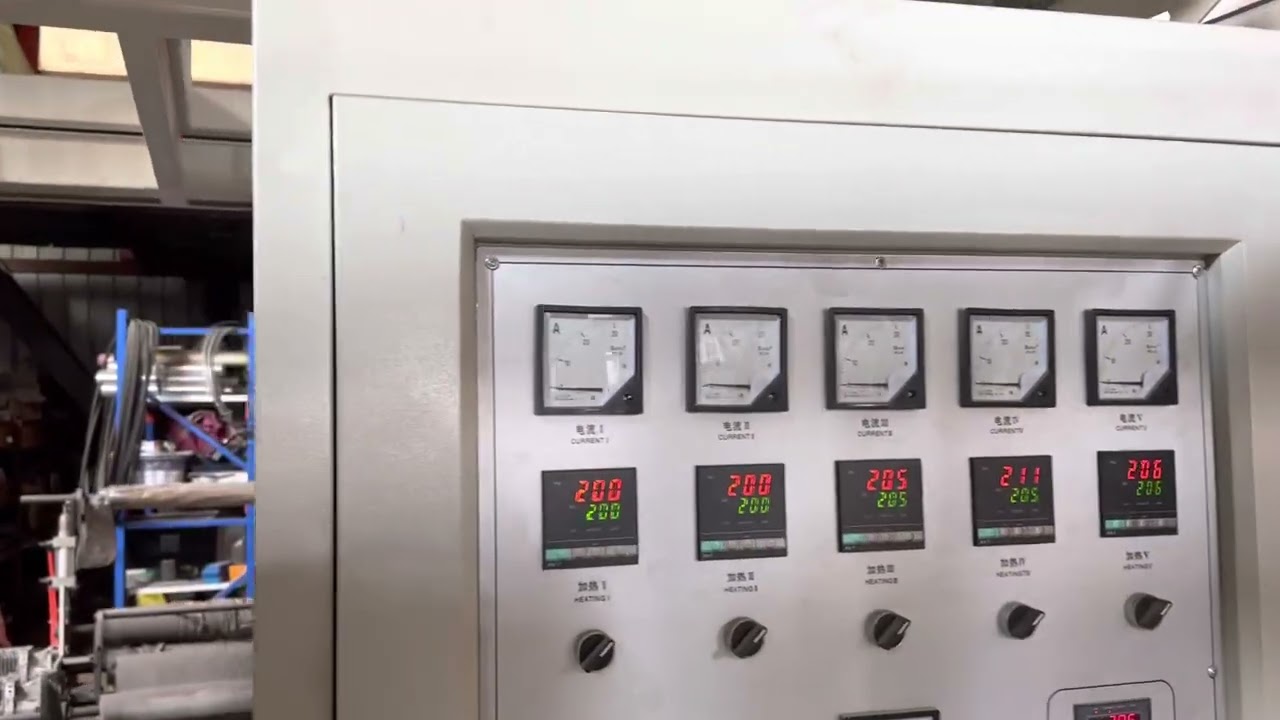

| Heating Control | 6 zones · stainless steel |
| Screen Changer | manual screen changer |
| Rewinder | double rewinder |
| Machine Frame Height | 4.2–6.5 m |
| Voltage | 380 V |
| Total Power | 70 kW |
| Traction Motor Power | 2.2 kW |
| Fan Power | 2.2 kW |
| Accessories | air compressor · 3 water rings (per customer requirement) |
| Traction Speed | 0–50 m/min |
| Traction Roller Width | 0.7 m |
| Clamping | pneumatic clamping roller |
Key features
Two Φ65 mm screws with a Φ250 mm rotary die head
double-layer co-extrusion in one bubble, no lamination step
38CrMoAlA nitrided screw and barrel
L/D 28:1, #173 gear box, screw speed 10–120 rpm
Six-zone stainless-steel heating with a manual screen changer for fast material changes
Aluminium alloy rotary air ring for even thickness across the bubble circumference
Haul-off runs to 50 m/min with a pneumatic clamping roller and a 2.2 kW traction motor
stable tension at both rolls
Total power 70 kW on 380 V three-phase
frame height 4.2–6.5 m to suit the hall
What it produces
Products you can manufacture with the pp film blowing machine.
More blown film machines
Explore other configurations for different production requirements.
Monolayer Blown Film Machine
The monolayer blown film machine by E-SHION Machinery is a precision-engineered solution designed for processing HDPE, LDPE, and LLDPE resins. This high-performance monolayer blown film extrusion machine is widely utilized for manufacturing liquid packaging, industrial liners, garment bags, and high-strength garbage bags.
600–1200 mm30–120 kg/h0.008–0.10 mm $18K–$45KView specs →
IBC 3 Layer Film Blowing Machine
Our IBC three-layer film blowing machine delivers uniform gauge and high clarity for LDPE, LLDPE, HDPE and EVA films — 500 kg/h output, 2600 mm folded width, ±5% tolerance, with internal bubble cooling, precision extrusion control and fully automated winding.
500 kg/h2600 mm0.025–0.15 mm $60K–$150KView specs →
ABA Film Blowing Machine
The ABA film blowing machine has become a cornerstone in the plastic packaging industry. By utilizing a three-layer co-extrusion process with only two extruders, it offers a perfect balance between high-quality output and significantly reduced production costs.
LDPE / LLDPE / HDPE / CaCO₃100–1200 mm40–120 kg/h $35K–$90KView specs →Frequently asked questions
Is the PP Film Blowing Machine right for my production?
This machine is built for film width: 200–1000 mm, max output: Up to 100 kg/h, film thickness: 0.01–0.15 mm. Tell us your film or bag size, material and target output — our engineers confirm the fit for your product and send a layout drawing with the quote.
Can you configure it to my film, bag size and voltage?
Yes. Material, film or bag width, output and your local voltage are configured before production — you receive a layout drawing with the quote, so you know exactly what you are buying.
How long does delivery take?
Standard machines ship within 25–45 days after order confirmation; complete production lines take 45–60 days. Every machine is assembled and test-run before shipment, with test videos and a final inspection report.
What does the price include?
Factory-direct price: $18,000 – $45,000. Before you order, you get a free layout drawing and production cost analysis. Installation and commissioning on site are available worldwide.
What support comes with the machine?
Installation and commissioning, operator training, 24/7 technical support with an average 4-hour response, and original spare parts — urgent parts dispatched within 48 hours, shipped globally.
How do I get today's factory-direct quote?
Send the form below or message us on WhatsApp +86 151 6778 9726. A real engineer replies with machine options, pricing and a layout drawing within 4 hours on business days.
