IBC 3 Layer Film Blowing Machine
Our IBC three-layer film blowing machine delivers uniform gauge and high clarity for LDPE, LLDPE, HDPE and EVA films — 500 kg/h output, 2600 mm folded width, ±5% tolerance, with internal bubble cooling, precision extrusion control and fully automated winding.
Machine detail gallery
Real factory photos of the ibc 3 layer film blowing machine — components, assembly, and finish.
Watch it run
Real production video of the ibc 3 layer film blowing machine in our Wenzhou plant.

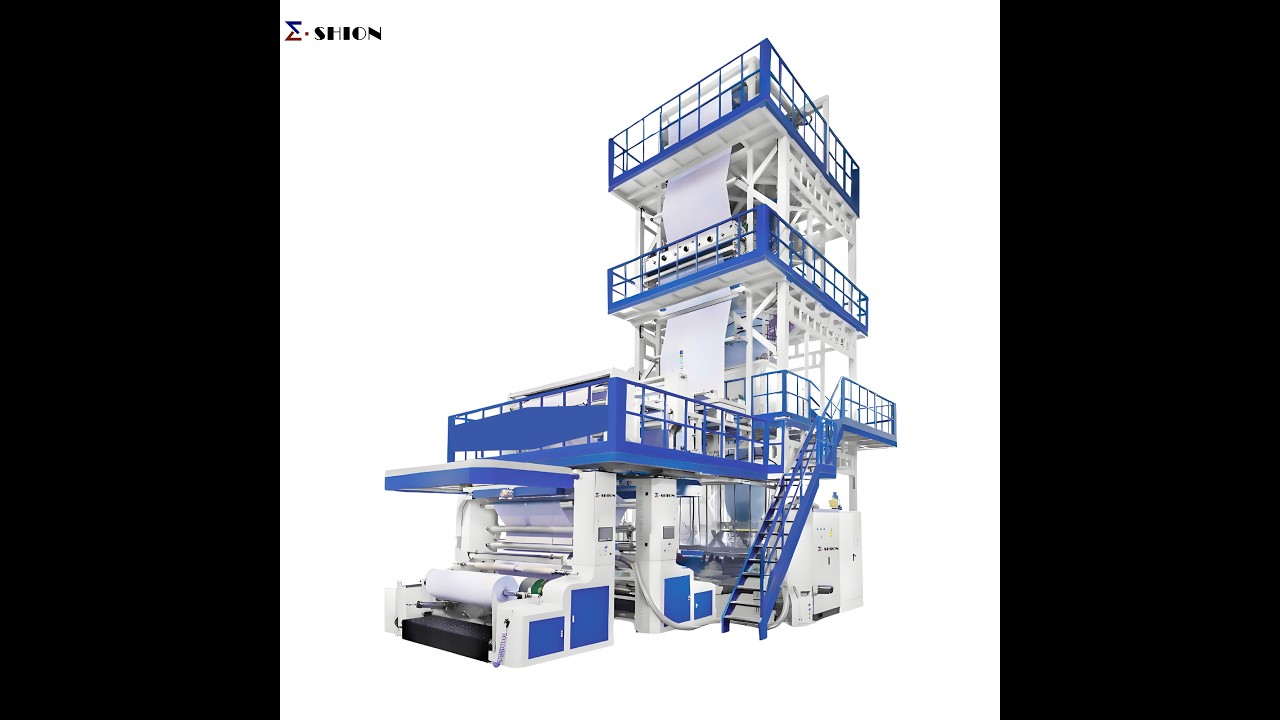

3 Layer Film Blowing Machine — Three-Layer Co-Extrusion IBC Blown Film Machine
- Machine running in real production
- Key process steps visible
- Finishing and winding shown
- Factory environment — not a studio render
Technical specifications
Complete technical parameters for the ibc 3 layer film blowing machine series.
| Model | SJ-3 |
|---|---|
| Max Output | 500 kg/h |
| Film Width (Folded) | 2,600 mm |
| Thickness Range | 0.025–0.15 mm |
| Tolerance | ±5% |
| Extruders | SJ90/30 (1) + SJ75/30 (2) |
| Screw Material | 38CrMoAlA (Nitrided) |
| IBC Cooling Accuracy | ±5 mm |
| Power Consumption | ≈250 kW (380 V, 50 Hz) |
| Machine Dimensions | 12.5 m × 8.5 m × 14 m |
Key features
1× SJ90/30 + 2× SJ75/30 single-screw extruders
L/D 30:1
38CrMoAlA nitrided alloy steel screws
wear and corrosion resistant
55 kW or 75 kW extruder motors with Delta inverters
24-zone automatic temperature control
ceramic and stainless heating rings with air over-temperature cooling
Hardened tooth-surface gearbox with forced oil circulation and water cooling
IBC 700 mm die with 2.2 mm gap
40Cr mold steel
- Chrome-plated, dead-zone-free flow channels for even layer distribution
- Stainless strip heating, about 25 kW; 22 kW inverter-controlled external cooling fan
- Taiwan-style 1680 mm dual-port air ring
- 7.5 kW inlet + 7.5 kW outlet variable-frequency fans

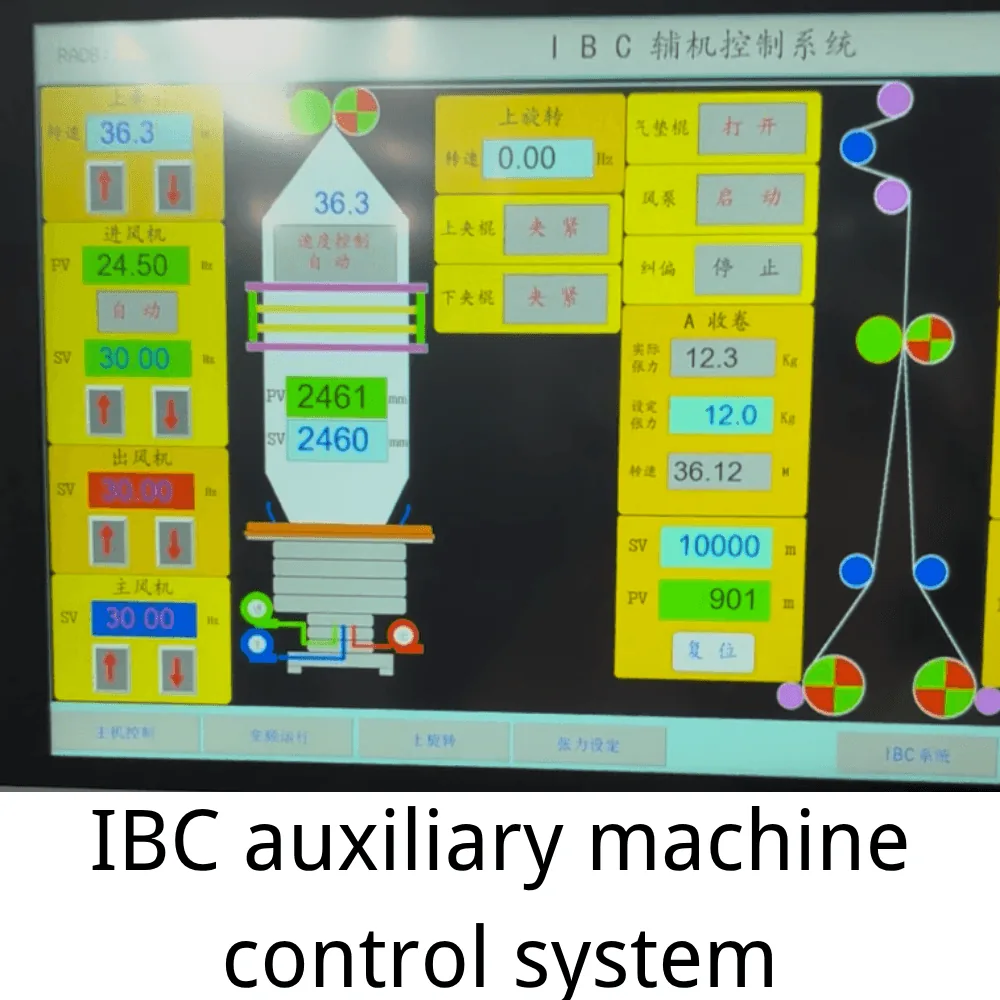

- Ultrasonic bubble diameter sensors with PLC control, accuracy ±5 mm
- 14 m three-layer tower with inner walkway and air-cushion rotating guide rollers
- Horizontal ±360° rotating haul-off; 1.5 kW variable-frequency pulling motor
- Max bubble diameter 2600 mm; max folded width 2600 mm
- Dual-position automatic friction winder with Ø325×2800 mm nitrile rubber roller
- Rewind speed 10–80 m/min; max roll Ø800 mm; four Ø74 mm air shafts
- Flying-knife changeover, length metering horn and waste-free edge slitting
- 10.4-inch touch screen with PLC centralized control
- Delta inverters; Schneider low-voltage components; P+F ultrasonic sensor; Parker rodless cylinder
- 380 V / 50 Hz three-phase, about 250 kW installed
- Optional: Hydraulic screen changer with hydraulic station
- Optional: Three-layer co-extrusion micro weight system
- Optional: 10 kW corona treater (closed frame, Ø90×2700 mm)
- Optional: 20 HP chiller
What it produces
Products you can manufacture with the ibc 3 layer film blowing machine.
More blown film machines
Explore other configurations for different production requirements.
