3 Layer Air Bubble Film Machine
A 3-layer co-extrusion air bubble film machine producing protective bubble wrap at finished widths to 3,000 mm and 1300 mm winding diameter, with three separate extrusion units and 190 kW total installed power. Built for e-commerce and logistics protective packaging.
Watch it run

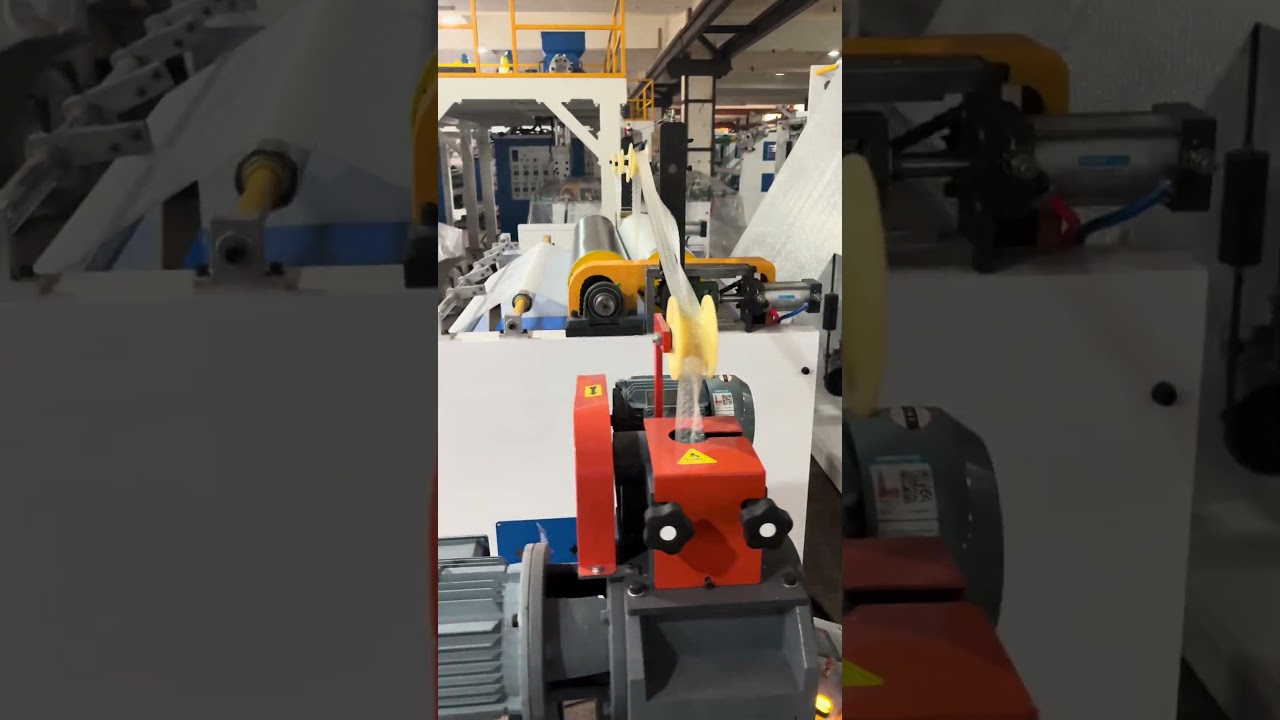

Real production video of the 3 layer air bubble film machine in our Wenzhou plant.
Three-Layer Co-Extrusion Air Bubble Film Machine
- Machine running in real production
- Key process steps visible
- Finishing and winding shown
- Factory environment — not a studio render
Technical specifications
Complete technical parameters for the 3 layer air bubble film machine series.
| Bubble Layer Unit | 105 mm diameter screw |
|---|---|
| Base Layer Unit | 95 mm diameter screw |
| Coating Layer Unit | 90 mm diameter screw |
| Max Finished Width | 3,000 mm | Customizable for various roll sizes |
| Max Winding Diameter | 1,300 mm | High-capacity industrial rolls |
| Extrusion Uniformity | 5% | Ensures consistent thickness and quality |
| Total Power | 190 kW | Optimized for energy efficiency |
Key features
Three separate extrusion units to create a composite structure
Screw L/D ratio of 35:1 for optimal plasticization
718 mold steel die head with hard chrome plating
Maximum extrusion rate of 280–450 kg/h
What it produces
Products you can manufacture with the 3 layer air bubble film machine.
More blown film machines
Explore other configurations for different production requirements.
Monolayer Blown Film Machine
The monolayer blown film machine by E-SHION Machinery is a precision-engineered solution designed for processing HDPE, LDPE, and LLDPE resins. This high-performance monolayer blown film extrusion machine is widely utilized for manufacturing liquid packaging, industrial liners, garment bags, and high-strength garbage bags.
600–1200 mm30–120 kg/h0.008–0.10 mm $18K–$45KView specs →
IBC 3 Layer Film Blowing Machine
Our IBC three-layer film blowing machine delivers uniform gauge and high clarity for LDPE, LLDPE, HDPE and EVA films — 500 kg/h output, 2600 mm folded width, ±5% tolerance, with internal bubble cooling, precision extrusion control and fully automated winding.
500 kg/h2600 mm0.025–0.15 mm $60K–$150KView specs →
ABA Film Blowing Machine
The ABA film blowing machine has become a cornerstone in the plastic packaging industry. By utilizing a three-layer co-extrusion process with only two extruders, it offers a perfect balance between high-quality output and significantly reduced production costs.
LDPE / LLDPE / HDPE / CaCO₃100–1200 mm40–120 kg/h $35K–$90KView specs →Frequently asked questions
Is the 3 Layer Air Bubble Film Machine right for my production?
This machine is built for bubble layer unit: 105 mm diameter screw, base layer unit: 95 mm diameter screw, coating layer unit: 90 mm diameter screw. Tell us your film or bag size, material and target output — our engineers confirm the fit for your product and send a layout drawing with the quote.
Can you configure it to my film, bag size and voltage?
Yes. Material, film or bag width, output and your local voltage are configured before production — you receive a layout drawing with the quote, so you know exactly what you are buying.
How long does delivery take?
Standard machines ship within 25–45 days after order confirmation; complete production lines take 45–60 days. Every machine is assembled and test-run before shipment, with test videos and a final inspection report.
What does the price include?
Factory-direct price: $25,000 – $65,000. Before you order, you get a free layout drawing and production cost analysis. Installation and commissioning on site are available worldwide.
What support comes with the machine?
Installation and commissioning, operator training, 24/7 technical support with an average 4-hour response, and original spare parts — urgent parts dispatched within 48 hours, shipped globally.
How do I get today's factory-direct quote?
Send the form below or message us on WhatsApp +86 151 6778 9726. A real engineer replies with machine options, pricing and a layout drawing within 4 hours on business days.
