ABA Film Blowing Machine
ABA Film Blowing Machine — widths 100–1200 mm, output 40–120 kg/h, factory-direct $35,000 – $90,000. The ABA film blowing machine has become a cornerstone in the plastic packaging industry. By utilizing a three-layer co-extrusion process with only two extruders, it offers a perfect balance between high-quality output and significantly reduced production costs.

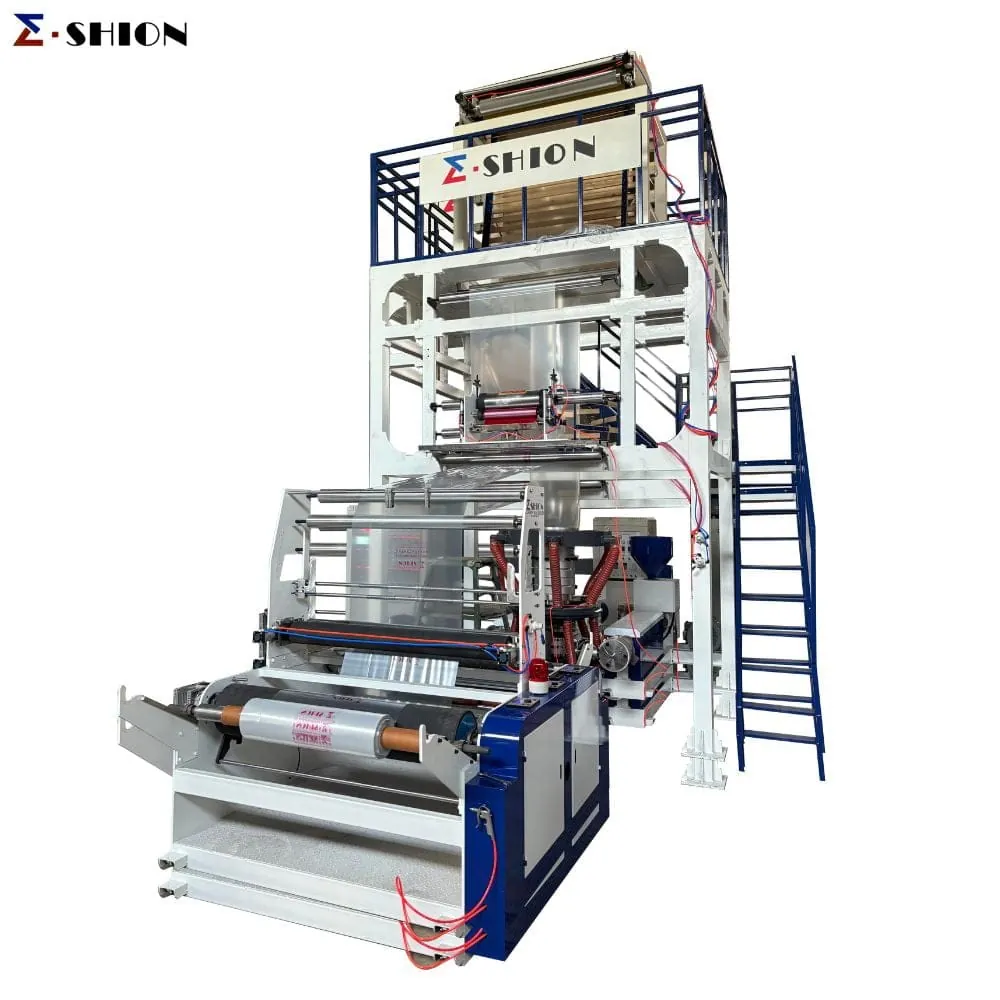

Machine detail gallery
Real factory photos of the aba film blowing machine — components, assembly, and finish.

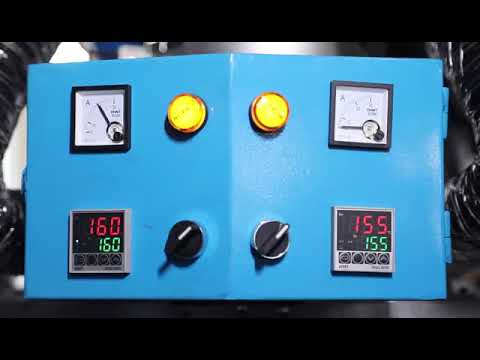

Watch it run
Real production video of the aba film blowing machine in our Wenzhou plant.
ABA Film Blowing Machine — Factory Footage
- Machine running in real production
- Key process steps visible
- Finishing and winding shown
- Factory environment — not a studio render
Technical specifications
Complete technical parameters for the aba film blowing machine series.
| Model | SJ-FM1100 | SJ-FM1600 | SJ-FM1800 |
|---|---|
| Material Type | LDPE/LLDPE/HDPE/CaCO₃ |
| Film Width | 100–600 mm | 300–1,000 mm | 400–1,200 mm |
| Max Output | 40–60 kg/h | 60–100 kg/h | 60–120 kg/h |
| Screw Diameter | φ45 / 50 | φ50 / 55 | φ60 / 65 |
| Motor Power | 11 kW / 15 kW | 18.5 kW / 22 kW | 22 kW / 30 kW |
| Dimensions (LWH) | 5.5 × 2.2 × 4.5 m | 6.2 × 2.8 × 5.4 m | 7.0 × 3.0 × 6.0 m |
| Total Power | 52 kW installed (11–30 kW motors per model) |
Key features
Two extrusion units and a specialized three-layer co-extrusion die head (A/B/A structure)
Can also produce AAA films (monolayer equivalent)
Up to 30% recycled materials or fillers in the middle layer
What it produces
Products you can manufacture with the aba film blowing machine.
More blown film machines
Explore other configurations for different production requirements.
Monolayer Blown Film Machine
The monolayer blown film machine by E-SHION Machinery is a precision-engineered solution designed for processing HDPE, LDPE, and LLDPE resins. This high-performance monolayer blown film extrusion machine is widely utilized for manufacturing liquid packaging, industrial liners, garment bags, and high-strength garbage bags.
600–1200 mm30–120 kg/h0.008–0.10 mm $18K–$45KView specs →
IBC 3 Layer Film Blowing Machine
Our IBC three-layer film blowing machine delivers uniform gauge and high clarity for LDPE, LLDPE, HDPE and EVA films — 500 kg/h output, 2600 mm folded width, ±5% tolerance, with internal bubble cooling, precision extrusion control and fully automated winding.
500 kg/h2600 mm0.025–0.15 mm $60K–$150KView specs →
3 Layer Air Bubble Film Machine
A 3-layer co-extrusion air bubble film machine producing protective bubble wrap at finished widths to 3,000 mm and 1300 mm winding diameter, with three separate extrusion units and 190 kW total installed power. Built for e-commerce and logistics protective packaging.
105 mm diameter screw95 mm diameter screw90 mm diameter screw $25K–$65KView specs →Frequently asked questions
Is the ABA Film Blowing Machine right for my production?
This machine is built for material type: LDPE / LLDPE / HDPE / CaCO₃, film width: 100–1200 mm, max output: 40–120 kg/h. Tell us your film or bag size, material and target output — our engineers confirm the fit for your product and send a layout drawing with the quote.
Can you configure it to my film, bag size and voltage?
Yes. Material, film or bag width, output and your local voltage are configured before production — you receive a layout drawing with the quote, so you know exactly what you are buying.
How long does delivery take?
Standard machines ship within 25–45 days after order confirmation; complete production lines take 45–60 days. Every machine is assembled and test-run before shipment, with test videos and a final inspection report.
What does the price include?
Factory-direct price: $35,000 – $90,000. Before you order, you get a free layout drawing and production cost analysis. Installation and commissioning on site are available worldwide.
What support comes with the machine?
Installation and commissioning, operator training, 24/7 technical support with an average 4-hour response, and original spare parts — urgent parts dispatched within 48 hours, shipped globally.
How do I get today's factory-direct quote?
Send the form below or message us on WhatsApp +86 151 6778 9726. A real engineer replies with machine options, pricing and a layout drawing within 4 hours on business days.
