YTL 41000 Four-Color Flexo Printing Machine
A dependable four-color stack flexo press for non-woven, paper and film printing — with double unwind, double rewind and helical gear drive. It prints 950 mm wide at 10–70 m/min in 4+0 to 2+2 color splits, factory-direct from $28,000 to $55,000.
Watch it run
Real production video of the ytl 41000 four-color flexo printing machine in our Wenzhou plant.

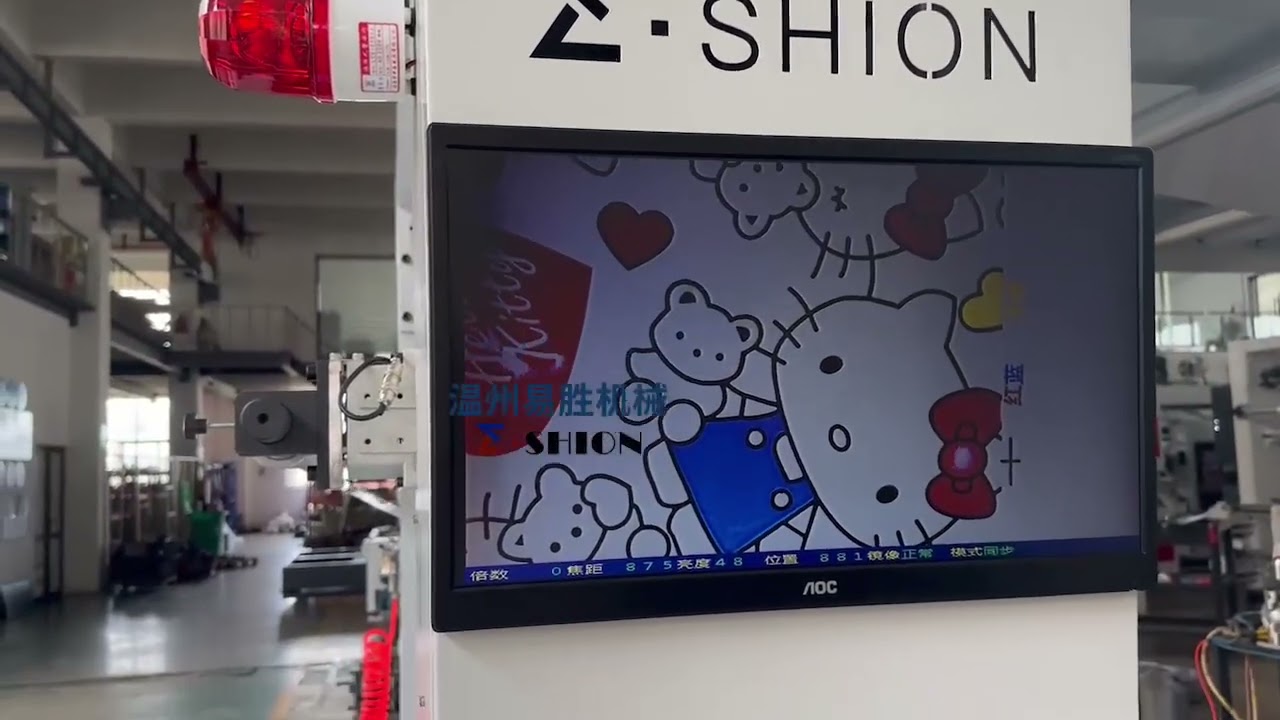

Four-Color Flexo Printing Machine — Factory Footage
- Machine running in real production
- Key process steps visible
- Finishing and winding shown
- Factory environment — not a studio render
Technical specifications
Complete technical parameters for the ytl 41000 four-color flexo printing machine series.
| Model | YTL 41000 |
|---|---|
| Max. Width of Material | 1,000 mm |
| Max. Width of Printing | 950 mm |
| Materials | Non-woven 15–120 g · Paper 15–350 g/m² · PVC 15–120 µm · OPP/BOPP 10–100 µm · PE 10–150 µm · NY 15–120 µm · PET 10–100 µm · CPP 15–100 µm |
| Printing Colors | 4 (4+0, 3+1, 2+2) |
| Length of Printing | 220–1000 mm (one 400 mm cylinder set free) |
| Mechanical Speed | 10–100 m/min |
| Speed of Material Printing | 10–70 m/min |
| Overprint Precision | ±0.25 mm |
| Plate Thickness | Resin 1.14/1.7/2.28/2.54/2.94 mm · Rubber 3.94 mm |
| Printing Unit | Metal anilox roller · rubber roller · chrome plated roller · printing cylinder (ceramic anilox + single doctor blade optional) |
| Unwind | Double unwind · max dia. 600 mm · auto tension (magnetic powder with fan 2.5 kg ×2) · EPC 1 set · air shafts 2 pcs |
| Traction | 2 zones · aluminum + chrome plated rollers |
| Drying | 20 kW · blowing first, then heating · top circulation drying box + station drying |
| Electrical | Main motor 3 kW + 3.7 kW inverter · 380 V / 3PH / 50 Hz · Siemens main motor · Delta inverter · Omron relays/temperature controller · CHNT contactors/breakers · Schneider buttons · NSK bearings |
| Rewind | Double rewind · max dia. 600 mm · auto tension (magnetic powder 5 kg ×2) · air shafts 2 pcs |
| Machine Weight | 3,500 kg |
| Machine Dimension (L×W×H) | 4.8 × 2.0 × 2.8 m |
Key features
Helical gear plus belt drive with NSK bearings
Phosphating anti-rust treatment on printing roller bases and gears
Double unwinder and double rewinder with automatic EPC web guide
20 kW drying system with top circulation drying box
What it produces
Products you can manufacture with the ytl 41000 four-color flexo printing machine.
More flexo printing machines
Explore other configurations for different production requirements.
Frequently asked questions
Is the YTL 41000 Four-Color Flexo Printing Machine right for my production?
This machine is built for max. print width: 950 mm, printing colors: 4 (4+0 / 3+1 / 2+2), print speed: 10–70 m/min. Tell us your film or bag size, material and target output — our engineers confirm the fit for your product and send a layout drawing with the quote.
Can you configure it to my film, bag size and voltage?
Yes. Material, film or bag width, output and your local voltage are configured before production — you receive a layout drawing with the quote, so you know exactly what you are buying.
How long does delivery take?
Standard machines ship within 25–45 days after order confirmation; complete production lines take 45–60 days. Every machine is assembled and test-run before shipment, with test videos and a final inspection report.
What does the price include?
Factory-direct price: $28,000 – $55,000. Before you order, you get a free layout drawing and production cost analysis. Installation and commissioning on site are available worldwide.
What support comes with the machine?
Installation and commissioning, operator training, 24/7 technical support with an average 4-hour response, and original spare parts — urgent parts dispatched within 48 hours, shipped globally.
How do I get today's factory-direct quote?
Send the form below or message us on WhatsApp +86 151 6778 9726. A real engineer replies with machine options, pricing and a layout drawing within 4 hours on business days.
