YTB-A 61000 Six-Color Stack Flexo Printing Machine
A high-speed stack-type flexographic press for paper, film, non-woven and woven PP packaging — 950 mm print width with hydraulic register control. Six color stations run 6+0 to 3+3 combinations at 10–120 m/min, priced factory-direct from $40,000 to $90,000.

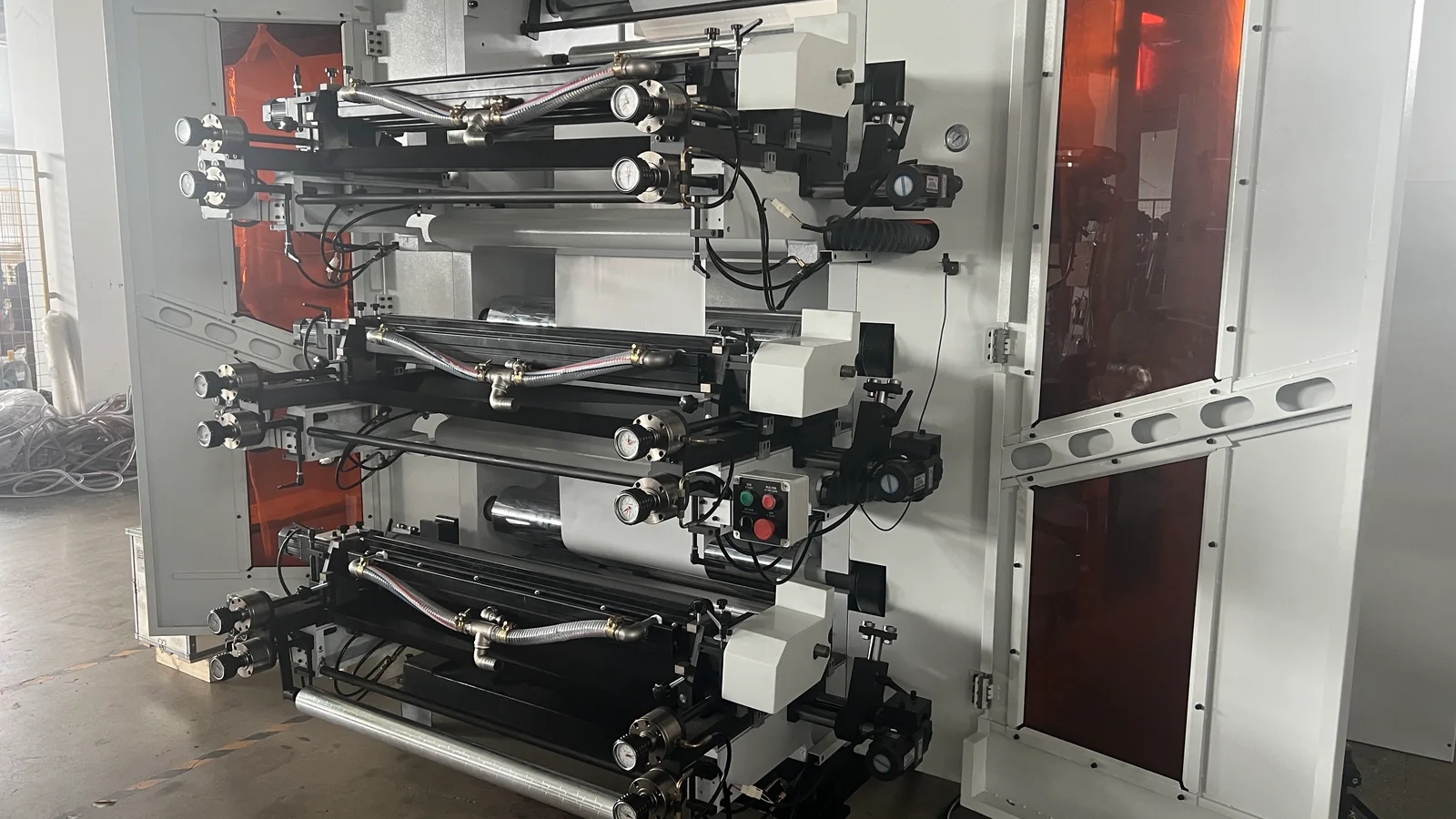

Machine detail gallery
Real factory photos of the ytb-a 61000 six-color stack flexo printing machine — components, assembly, and finish.

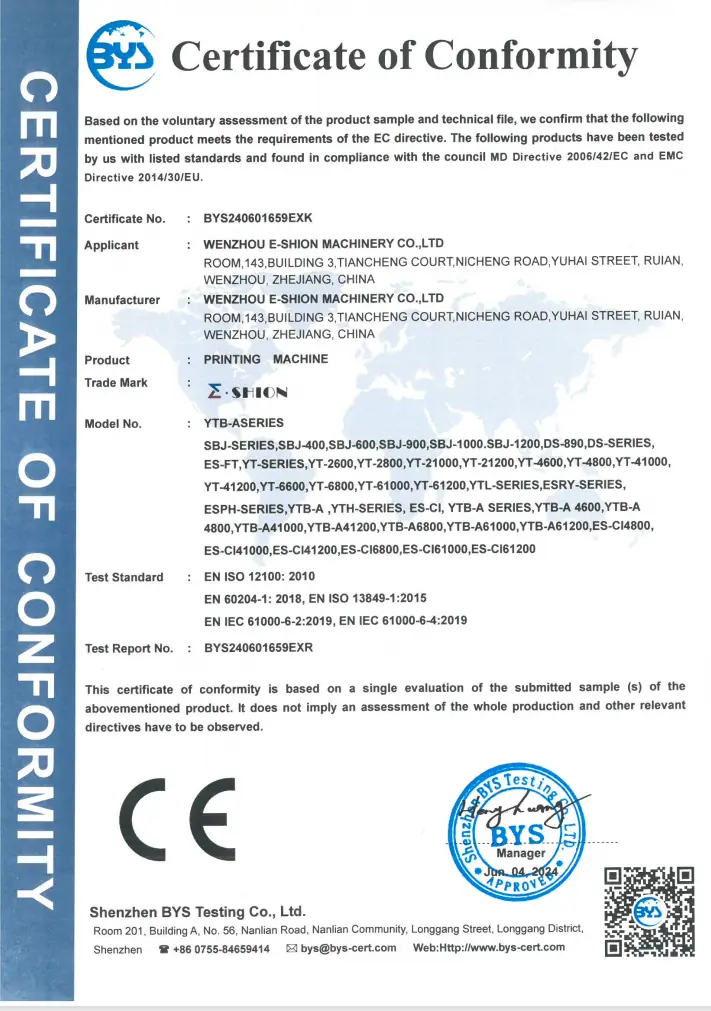

CE certification

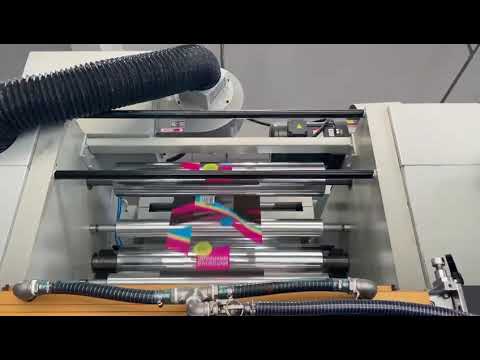

Watch it run
Real production video of the ytb-a 61000 six-color stack flexo printing machine in our Wenzhou plant.
Six-Color Stack Flexo Printing Machine — Factory Footage
- Machine running in real production
- Key process steps visible
- Finishing and winding shown
- Factory environment — not a studio render
Technical specifications
Complete technical parameters for the ytb-a 61000 six-color stack flexo printing machine series.
| Model | YTB-A 61000 |
|---|---|
| Max. Width of Material | 1,000 mm |
| Max. Width of Printing | 950 mm |
| Materials | Paper 17–350 g/m² · Non-woven 15–120 g · PVC 10–120 µm · OPP/BOPP 10–100 µm · PE 15–150 µm · NY 10–120 µm · PET 10–100 µm · CPP 10–100 µm · Woven PP 0.01–5 mm |
| Printing Colors | 6 (6+0, 5+1, 4+2, 3+3, double side) |
| Max. Length of Printing | 280–1200 mm (one 400 mm cylinder set free) |
| Max. Speed of Printing | 10–120 m/min (depends on material) |
| Overprint Precision | ±0.2 mm |
| Plate Thickness | Resin 1.14/1.7/2.28/2.54/2.94 mm · Rubber 3.94 mm |
| Anilox Roller | Ceramic, dia. 106.2 mm × 6 pcs |
| Doctor Blade | Chamber type, Teflon treated × 6 pcs |
| Hydraulic Cylinders | 48 pcs (in/out + plate lock per station) |
| Unwind | Max dia. 1200 mm · auto tension (magnetic powder 10 kg) · ultrasonic EPC · pneumatic auto loading · air shaft |
| Traction | 2 zones · aluminum + chrome plated rollers |
| Drying | 25 kW · blowing first, then heating · station + central dryers |
| Electrical | Main motor 5.5 kW · 380 V / 3PH / 50 Hz · Siemens PLC · Weinview HMI · Schneider contactors/breakers · Omron relays · Yaskawa inverter |
| Rewind | Max dia. 1200 mm · auto unloading · magnetic powder 10 kg + 3.7 kW reducer · banana roller · air shaft |
| Machine Weight | 5,200 kg |
| Machine Dimension (L×W×H) | 7.0 × 2.2 × 3.5 m |
Key features
Synchronous belt drive with all gears mounted outside the machine base
Ceramic anilox roller and Teflon-treated chamber doctor blade per station
48 hydraulic cylinders for in/out movement and plate lock
25 kW drying system that blows first and then heats
What it produces
Products you can manufacture with the ytb-a 61000 six-color stack flexo printing machine.
More flexo printing machines
Explore other configurations for different production requirements.
Frequently asked questions
Is the YTB-A 61000 Six-Color Stack Flexo Printing Machine right for my production?
This machine is built for max. print width: 950 mm, printing colors: 6 (6+0 / 5+1 / 4+2 / 3+3), print speed: 10–120 m/min. Tell us your film or bag size, material and target output — our engineers confirm the fit for your product and send a layout drawing with the quote.
Can you configure it to my film, bag size and voltage?
Yes. Material, film or bag width, output and your local voltage are configured before production — you receive a layout drawing with the quote, so you know exactly what you are buying.
How long does delivery take?
Standard machines ship within 25–45 days after order confirmation; complete production lines take 45–60 days. Every machine is assembled and test-run before shipment, with test videos and a final inspection report.
What does the price include?
Factory-direct price: $40,000 – $90,000. Before you order, you get a free layout drawing and production cost analysis. Installation and commissioning on site are available worldwide.
What support comes with the machine?
Installation and commissioning, operator training, 24/7 technical support with an average 4-hour response, and original spare parts — urgent parts dispatched within 48 hours, shipped globally.
