T-Shirt Bag Making Machine (DFR-400X2)
The t-shirt bag making machine (Model DFR-400X2) represents the pinnacle of high-speed, fully automatic plastic packaging technology. Designed specifically for the heat sealing and cutting of vest bags, this advanced t-shirt bag making machine is engineered to automatically punch two lines simultaneously.

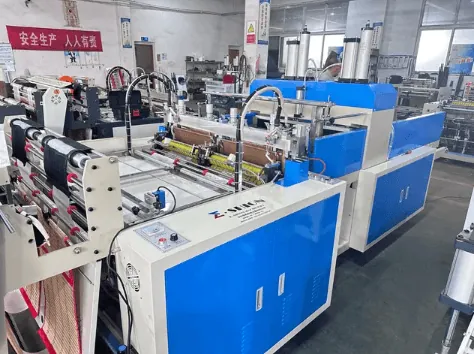

Machine detail gallery
Real factory photos of the t-shirt bag making machine (dfr-400x2) — components, assembly, and finish.
CE certification

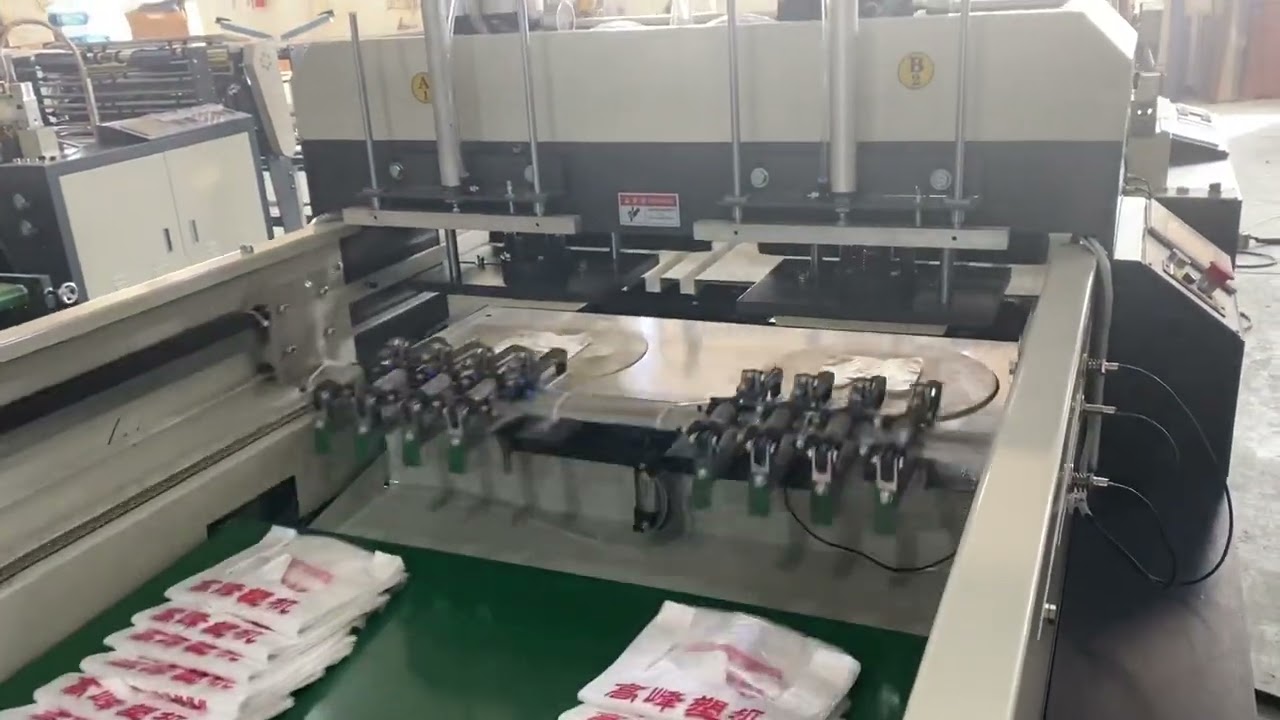

Watch it run
Real production video of the t-shirt bag making machine (dfr-400x2) in our Wenzhou plant.
DFR High-Speed T-Shirt Bag Making Machine — Factory Footage
- Machine running in real production
- Key process steps visible
- Finishing and winding shown
- Factory environment — not a studio render
Technical specifications
Complete technical parameters for the t-shirt bag making machine (dfr-400x2) series.
| Model | DFR-400×2 |
|---|---|
| Max. Bag Length | 280–650 mm (×2 lines) |
| Max. Bag Width | 180–320 mm (×2 lines) |
| Cutting Speed | 100–300 bags/min (×2 lines) |
| Bag Thickness | 0.01–0.05 mm |
| Total Power | 16 kW |
| Machine Weight | 2,700 kg |
| Dimensions | L6800 × W1700 × H1,800 mm |
| Main Motor | 1.5 kW (Shanghai Dedong) |
| Servo Motor | 4.8 kW (Huichuan) |
| Air Compressor Required | 10 HP (not included) |
| Main inverter | Huichuan |
| Unwinding inverter | Huichuan |
| Computer control | Wuxi XUNCHENG |
| Punching device | Iron plate, thick iron frame |
| Unwinding brake | Magnetic powder 5 kg |
| Booster cylinder | 5 tons |
| Hot cut blade | Songyue brand |
| Heating pipe | Imported 2,000 W |
| Temperature control | Shanghai Tatai |
| Air-blow solenoid valve | Japan SMC |
| Punching solenoid valve | Taiwan Mindman |
| Solid state relay | Taiwan Fortek |
| Contactor | CHINT |
| Button | Schneider |
| Bearing | Japan NSK |
| Colour / blocking / finishing photo-eye | Panasonic |
| Hall switch | Shanghai SDD |
Key features
Dual-servo motor configuration (Huichuan 4.8 kW brand)
Panasonic color photo-eyes for accurate printing patterns
Automatic stop warning system to prevent material waste
High-efficiency inverter (Huichuan brand)
What it produces
Products you can manufacture with the t-shirt bag making machine (dfr-400x2).
More bag making machines
Explore other configurations for different production requirements.
T-Shirt Bag Making Machine
If you manufacture plastic bags, a t-shirt bag making machine is your core asset. Choosing the wrong one leads to downtime, waste, and lost customers.
550 mm~1150 mm700 mm~1800 mm120–720 bags/min (2- to 6-line) From $9,000View specs →
Dr Garbage Bag Making Machine
The RES-1000 Automatic Drawstring Garbage Bag Making Machine, manufactured by E-SHION, stands as a premier industrial solution. This machine is specifically engineered for the high-volume production of “on-roll” drawstring bags.
On roll drawstring garbage bagWhite bags or printed bagsHDPE/LDPE $15K–$60KView specs →
DRW Thermal Cutting Bag Making Machine
Micro-computer controlled bag maker for BOPP, OPP and PE film — sock bags, towel bags, bread bags and ornament bags with photocell registration and auto counting.
10–950 mm50–990 mm40–180 pcs/min $15K–$60KView specs →Frequently asked questions
Is the T-Shirt Bag Making Machine (DFR-400X2) right for my production?
This machine is built for max. bag length: 280–650 mm (×2 lines), max. bag width: 180–320 mm (×2 lines), cutting speed: 100–300 bags/min (×2 lines). Tell us your film or bag size, material and target output — our engineers confirm the fit for your product and send a layout drawing with the quote.
Can you configure it to my film, bag size and voltage?
Yes. Material, film or bag width, output and your local voltage are configured before production — you receive a layout drawing with the quote, so you know exactly what you are buying.
How long does delivery take?
Standard machines ship within 25–45 days after order confirmation; complete production lines take 45–60 days. Every machine is assembled and test-run before shipment, with test videos and a final inspection report.
What does the price include?
Factory-direct price: $9,000 – $35,000. Before you order, you get a free layout drawing and production cost analysis. Installation and commissioning on site are available worldwide.
What support comes with the machine?
Installation and commissioning, operator training, 24/7 technical support with an average 4-hour response, and original spare parts — urgent parts dispatched within 48 hours, shipped globally.
How do I get today's factory-direct quote?
Send the form below or message us on WhatsApp +86 151 6778 9726. A real engineer replies with machine options, pricing and a layout drawing within 4 hours on business days.
