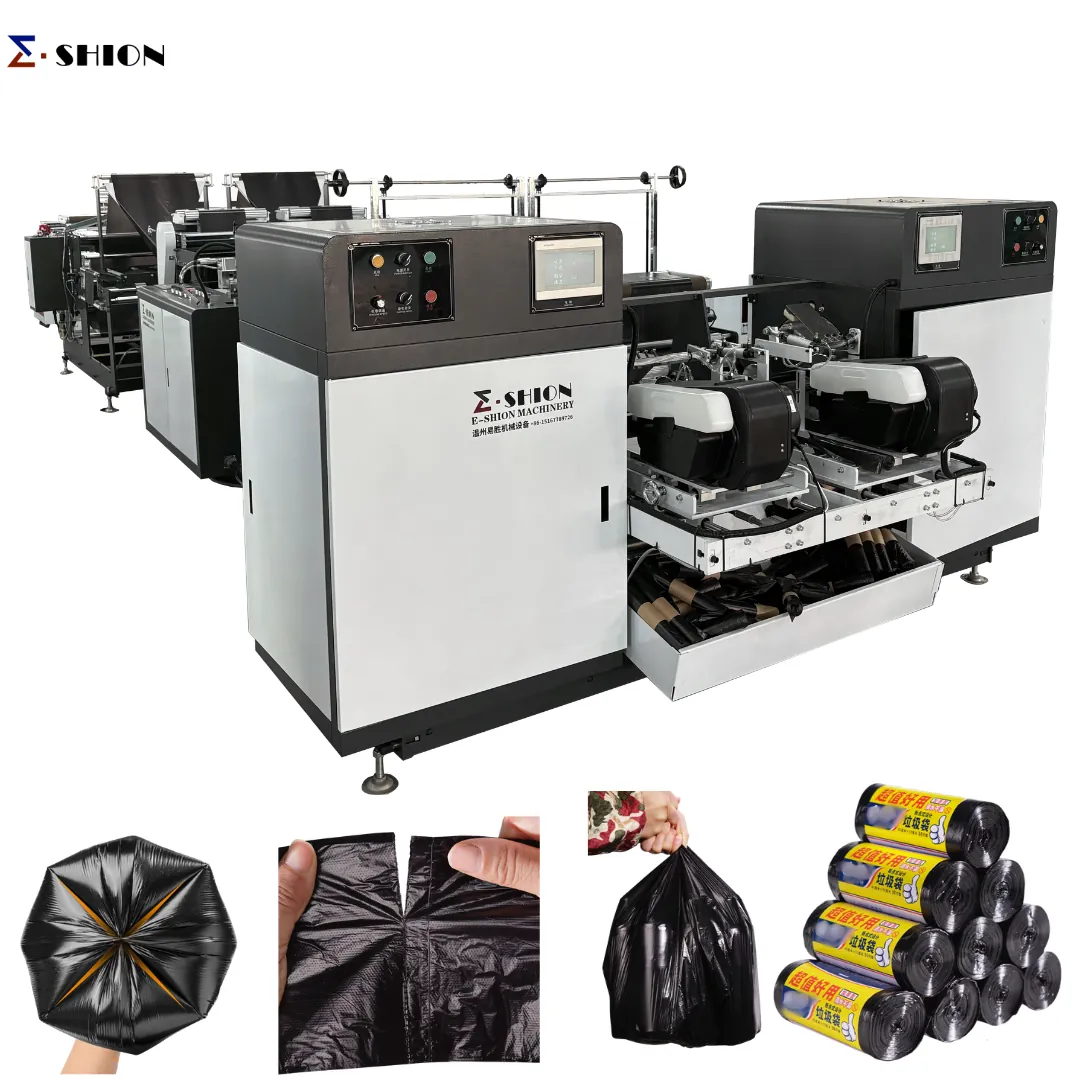

ES-L-500X2 Star Sealing & Flat Bag Making Machine
ES-L-500X2 Star Sealing & Flat Bag Making Machine — widths 80–300 mm x2, output 60–205 pcs/min x2, installed power ~19.5 kW, factory-direct $27,000 – $31,000 (base machine + optional label attachment). A double-lane automatic machine that turns flat film into finished rolls of star-sealing garbage bags in one pass - with servo length control, hot cutting and an optional automatic label attachment.
Machine detail gallery
Real factory photos of the es-l-500x2 star sealing & flat bag making machine — components, assembly, and finish.
Technical specifications
Complete technical parameters for the es-l-500x2 star sealing & flat bag making machine series.
| Model | ES-L-500X2 |
|---|---|
| Bag making method | Rolling star sealing flat bag (octagonal-fold) |
| Max. unwinding width | 600 mm |
| Bag making width | 80–300 mm (×2 finished rolls) |
| Bag making length | 100–1,200 mm |
| Bag making speed | 120–410 bags/min (60–205 × 2) |
| Max. line speed | 115 m/min |
| Bag thickness | 0.005–0.02 mm |
| Main motor | 1.5 kW (220 V AC) |
| Control | PLC + 7-inch touch screen |
| Servo drive | 3 kW x2 (bag length) |
| Temperature control | 4 zones, +/-2 C; copper knife 1.2 kW x2, 410 mm |
| Installed power | About 19.5 kW |
| Actual power consumption | About 6 kW.h |
| Machine weight | 2,500 kg |
| Machine dimensions | 6,200 × 2,400 × 1,900 mm |
Key features
Automatic control
computer control with automatic counting and set-count alarm
One pass
film to bag — from film roll to finished bag roll, fully automatic in one pass
Servo length + photoelectric tracking
servo fixed-length control with photoelectric feeding for accurate, stable bag size
Hot cutting & intelligent temperature control
firm, smooth seals with 4 temperature zones and high/low temperature alarm
Frequency-converter speed control
main drive speed regulated by frequency converter for flexible production
PLC-controlled rewinding
roll length and rewinding managed by PLC with independent lane counting
- Optional label attachment — automatic label sticking on finished rolls for retail-ready products
What it produces
Products you can manufacture with the es-l-500x2 star sealing & flat bag making machine.
More bag making machines
Explore other configurations for different production requirements.
T-Shirt Bag Making Machine
If you manufacture plastic bags, a t-shirt bag making machine is your core asset. Choosing the wrong one leads to downtime, waste, and lost customers.
550 mm~1150 mm700 mm~1800 mm120–720 bags/min (2- to 6-line) From $9,000View specs →
T-Shirt Bag Making Machine (DFR-400X2)
The t-shirt bag making machine (Model DFR-400X2) represents the pinnacle of high-speed, fully automatic plastic packaging technology. Designed specifically for the heat sealing and cutting of vest bags, this advanced t-shirt bag making machine is engineered to automatically punch two lines simultaneously.
280–650 mm (×2 lines)180–320 mm (×2 lines)100–300 bags/min (×2 lines) From $9,000View specs →
Dr Garbage Bag Making Machine
The RES-1000 Automatic Drawstring Garbage Bag Making Machine, manufactured by E-SHION, stands as a premier industrial solution. This machine is specifically engineered for the high-volume production of “on-roll” drawstring bags.
On roll drawstring garbage bagWhite bags or printed bagsHDPE/LDPE $15K–$60KView specs →Frequently asked questions
Is the ES-L-500X2 Star Sealing & Flat Bag Making Machine right for my production?
This machine is built for bag width: 80–300 mm x2, bag length: 100–1200 mm, speed: 60–205 pcs/min x2. Tell us your film or bag size, material and target output — our engineers confirm the fit for your product and send a layout drawing with the quote.
Can you configure it to my film, bag size and voltage?
Yes. Material, film or bag width, output and your local voltage are configured before production — you receive a layout drawing with the quote, so you know exactly what you are buying.
How long does delivery take?
Standard machines ship within 25–45 days after order confirmation; complete production lines take 45–60 days. Every machine is assembled and test-run before shipment, with test videos and a final inspection report.
What does the price include?
Factory-direct price: $27,000 – $31,000 (base machine + optional label attachment). Before you order, you get a free layout drawing and production cost analysis. Installation and commissioning on site are available worldwide.
What support comes with the machine?
Installation and commissioning, operator training, 24/7 technical support with an average 4-hour response, and original spare parts — urgent parts dispatched within 48 hours, shipped globally.
How do I get today's factory-direct quote?
Send the form below or message us on WhatsApp +86 151 6778 9726. A real engineer replies with machine options, pricing and a layout drawing within 4 hours on business days.
